As the domestic leading manufacturer in crushing and screening area, our products have reached world-level advanced standard. PE Jaw Crusher, as the first choice of primary crushing, can be divided into coarse crushing and fine crushing, the feeding size is 125mm~1100mm.

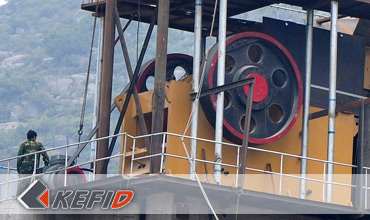

Please contact us online or send email to sales@kefidinc.com, if you want to find the nearest PE Jaw Crusher working site in your country.
High crushing ratio, Even final size, Simple structure, Reliable working condition, Easy maintenance, Low operating cost.
PE Jaw Crusher is mainly used in medium size crushing of rocks and bulk material, whose compressive strength is below 320Mpa. Jaw Crusher is widely used in mine, metallurgy, the building, road and railroad construction, hydraulic construction, chemical industry, fire-proofing material and ceramics.
The plant is composed of main frame, eccentric shaft, flying wheel, toggle plate, jaw plate, tension rod, fixed jaw, movable jaw, and toggle plate can secure the whole body.
The motor transmits power through belt, and drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed during this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw leaves fixed jaw by pulling rod and spring, the crushed stuff will be discharged from the outlet.
Model | Max. Feeding Size (mm) |
Discharge Size (mm) |
Capacity (t/h) | Motor Power (kw) |
Overall Dimensions (mm) |
Weight (t) |
PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
PE600×900 | 480 | 65-160 | 60-168 | 75 | 2290×2206×2370 | 16.5 |
PE750×1060 | 630 | 80-140 | 100-250 | 110 | 2620×2302×3110 | 29 |
PE900×1200 | 750 | 95-165 | 160-380 | 130 | 3789×2826×3025 | 54.5 |
PE1000×1200 | 850 | 195-265 | 315-550 | 130 | 3335×3182×3025 | 57 |
PE1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 4200×3750×3820 | 100.9 |
Note: Any change of PE Jaw Crusher technical data shall not be advised additionally.
