TGM trapezoidal mill
Capacity: 3-22 t/h
Discharge Fineness: 1.6 - 0.038 mm
The TGM type trapezoidal mill, developed by Liming Heavy Industry, is a highly efficient and energy-saving grinding equipment designed for processing medium to fine powders in the non-metallic mineral, chemical and building materials industries. Optimized from traditional mills, it offers higher efficiency, lower energy consumption and superior operational stability, meeting the needs of large-scale industrial production.
Mineral Processing:
✔ Non-metallic Minerals: Limestone, calcite, barite, dolomite, talc, quartz, feldspar, fluorite, etc.
✔ Chemicals: Bentonite, kaolin, graphite, phosphate, etc.
✔ Construction Materials: Cement clinker, slag, fly ash, etc.
✔ Other Materials: Pulverized coal, petroleum coke, activated carbon, etc.

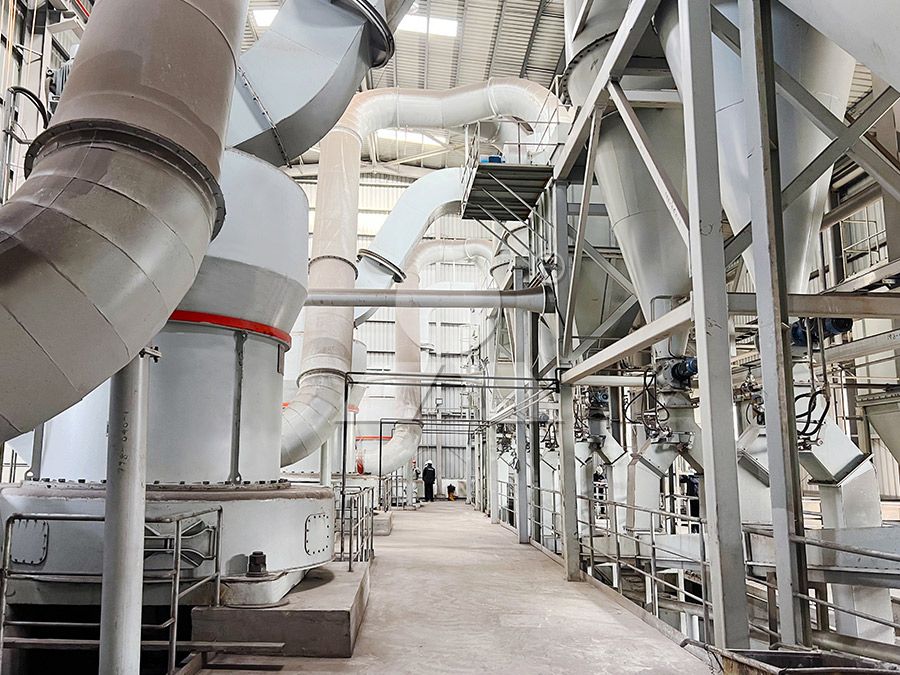

Production Line
Get a free consultation
Application
🏭 Building Materials Industry: Production of cement, concrete additives, gypsum powder, etc.
🧪 Chemical Industry: Preparation of fine raw materials, pigments, fillers, etc.
⚙️ Metallurgy: Grinding of slag and processing of auxiliary materials.
🌱 Industrial Recycling: Recovery of waste (fly ash, steel slag, etc.).
⚡ Energy Sector: Preparation of limestone for desulfurization in power plants.
Product Features
1. High efficiency, low power consumption
Patented trapezoidal roller technology for optimal grinding.
Advanced classification system reduces energy requirements.
2. Adjustable fineness (80-400 mesh)
Precise adjustment via the dynamic analyzer speed.
3. Stability and reliability
Reduction gear transmission + flexible coupling, minimizing vibration and noise (<75 dB).
4. Simplified maintenance
Wearing parts (rollers, ring gear) made of abrasion-resistant materials, extending service life.
Quick replacement without prolonged downtime.
5. Eco-friendly design
Built-in pulse dust collector, zero dust emissions.
Closed-circuit operation under negative pressure.
Working Principle
Feeding: Pre-ground materials are conveyed to the mill by an elevator.
Grinding: Compression and shearing between trapezoidal rollers and the grinding track.
Classification: Fine particles are separated by the turbine analyzer, while coarse particles are returned to the mill.
Collection: The fine powder is collected in the cyclone and then stored.
Quality Control: Particle size is guaranteed by dynamic adjustment.
Key Advantage: Continuous, automatic, and environmentally friendly process, ideal for modern production lines.
