LUM Ultra-fine vertical mill
Capacity: 5-18 t/h
Discharge Fineness: 625-3250 mesh
The LUM Ultra-fine Vertical Mill is a high-end equipment developed by Liming Heavy Industry based on vertical milling technology. Incorporating multi-stage selection and high-efficiency grinding technology, it achieves stable production of ultra-fine powder (325-2500 mesh). This system combines grinding, classification, and drying in one unit, offering advantages such as high energy efficiency, intelligent control, and low noise pollution. It is widely used in the fields of non-metallic minerals, chemistry, and new materials for the production of high-value-added ultra-fine powders.
Mineral Processing:
Non-metallic minerals: calcium carbonate (calcite/marble/chalk), quartz, feldspar, kaolin, mica, talc, graphite, etc.
Specialty materials: aluminum hydroxide, micronized silica, titanium dioxide, flame retardants, and other fine chemical raw materials.

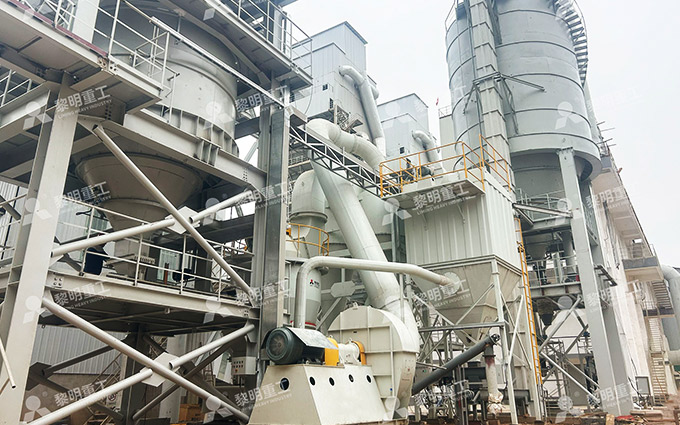

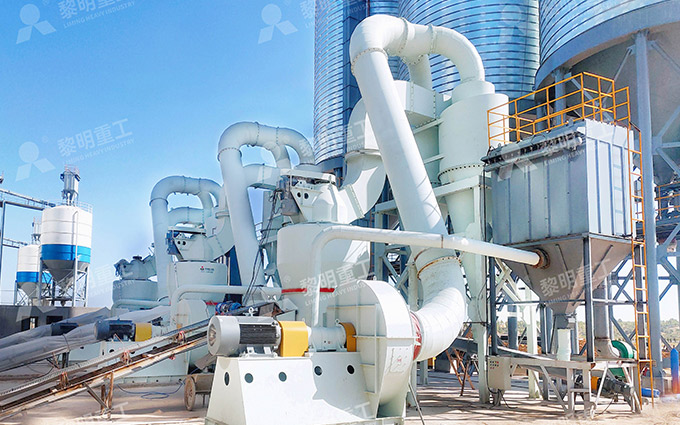

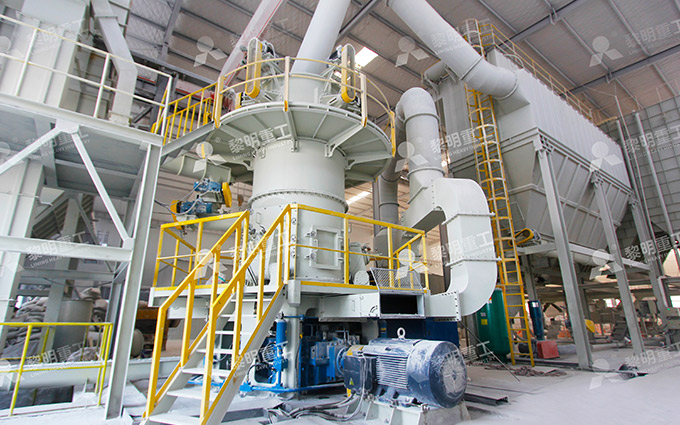

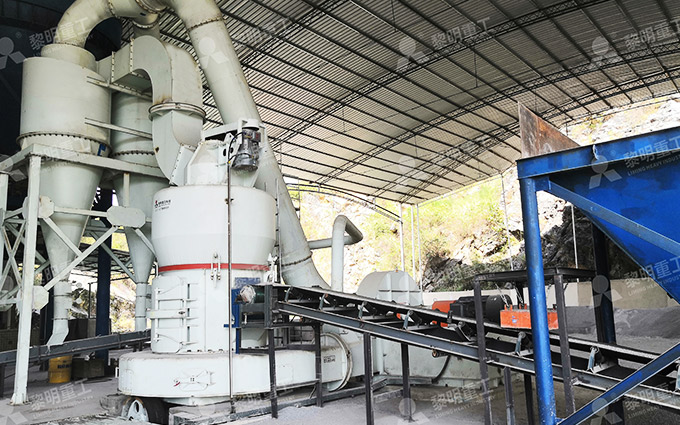

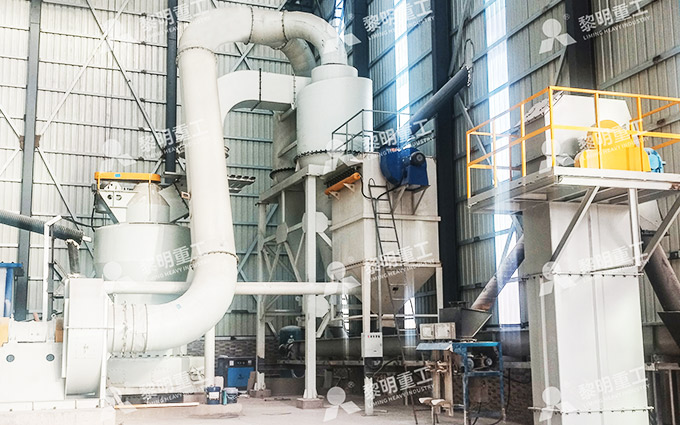

Production Line
Get a free consultation
Application
High-end construction materials: ultra-fine cement, specialty mortars, calcium silicate boards.
Chemistry and new materials: functional fillers for paints, inks, plastics, rubber, and adhesives.
New energies: anode/cathode materials for lithium-ion batteries, raw materials for photovoltaic glass.
Environmental industry: recovery of industrial waste (e.g., microspheres from fly ash).
Product Features
1. Ultra-fine Grinding Technology
Multi-layer vertical grinding wheel + high-precision turbine classification system, surpassing the limitations of traditional vertical mills.
Stable powder production up to 2500 mesh (D97 ≤ 5 μm).
2. Intelligent Control System
PLC automation + touch screen for real-time monitoring of vibration, temperature, and pressure.
Remote maintenance possible.
3. Energy-efficient and environmentally friendly design
Energy savings > 40% compared to conventional ball mills.
Fully enclosed vacuum operation with pulse filter, dust emissions < 20 mg/m³.
4. Modular Structure
Quick disassembly of main components, replacement of wear parts in just 4-8 hours.
Hydraulic pivoting rollers for easy maintenance and minimal downtime.
5. Multifunctional configuration
Hot air system option (maximum inlet temperature: 350°C) for drying.
Multi-motor variable-speed classifier, allowing for versatile production.
Working Principle
Feeding: Materials enter the rotating mill via a sealed feed system.
Grinding: Under the effect of centrifugal force, they migrate to the edge where the hydraulically driven rollers pulverize them.
Classification:
1st stage: Pre-classification by guide vanes.
2nd stage: Fine selection via a high-speed turbine.
Collection: Fine particles are conveyed to the collection system, while coarse particles fall back for a new cycle.
Control: The system operates under negative pressure, coupled with intelligent regulation for stable production.
This integrated and automated process guarantees consistent quality while optimizing energy efficiency.
