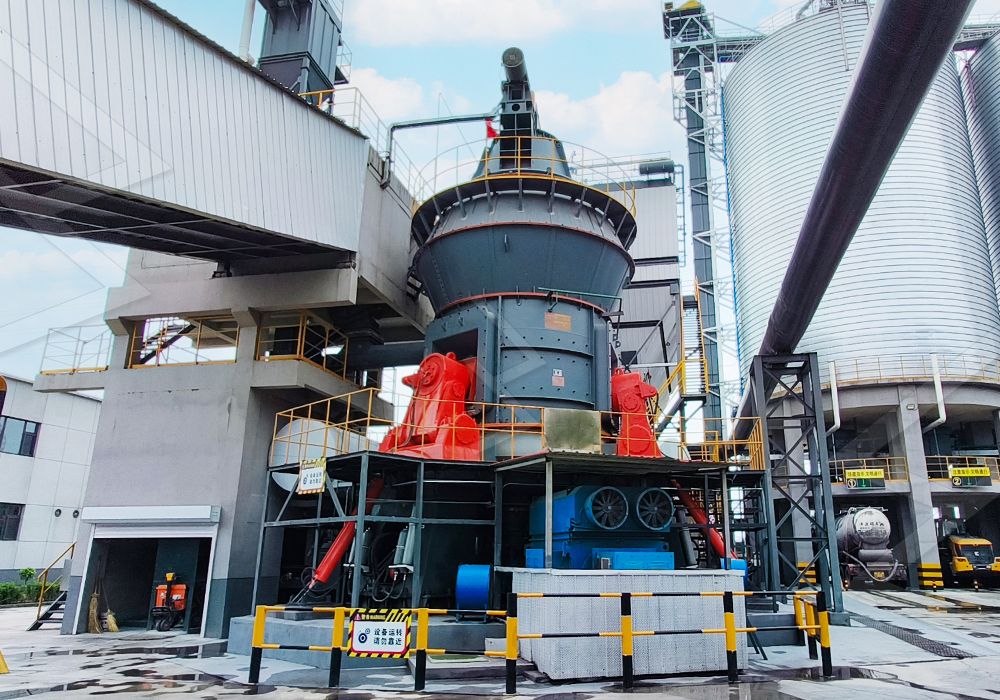

LM Vertical Slag Mill
Capacity: 7-200 t/h
Discharge Fineness: ≥420 m2/kg
The LM Vertical Slag Mill is a high-performance grinding equipment specially designed by Liming Heavy Industry for the recovery of industrial waste. Incorporating advanced vertical grinding technology, it efficiently processes various types of metallurgical slag and industrial residues. This system combines grinding, drying and classification with low energy consumption, high efficiency and excellent environmental performance, making it the key equipment for the production of slag micro-powder.
Mineral Processing:
Metallurgical slags: Blast furnace slag, steel slag, nickel residues, copper slag
Other materials: Slag cement, composite mixes, coal shale
Production Line
Get a free consultation
Application
Construction Materials: Slag powder production lines, manufacture of cement additives
Concrete: Preparation of additives for high-performance concrete
Industrial Recycling: Recovery of industrial solid waste
Civil Engineering: Special mortars, pavement materials
Product Features
1. Advanced Grinding Technology
Bed grinding, 40-50% energy savings vs. ball mills
Consumption ≤ 45kWh/t (specific surface area 420m²/kg)
2. Drying Power
Wet slag processing (humidity ≤ 15%)
Hot air temperature up to 450°C
3. Intelligent Control
Full PLC automation
Real-time monitoring (vibrations, temperature, pressure)
4. Environmental Performance
Vacuum operation (emissions < 20mg/m³)
Noise level < 85dB(A)
5. Operational Reliability
Adjustable hydraulic roller pressure system
Critical components made of long-lasting anti-wear materials
6. Flexible Adjustment
Adjustable fineness (350-550m²/kg)
Adapts to different slag types
Working Principle
Feeding: Slag is introduced into the center of the rotating grinding wheel.
Grinding:
Migration toward the periphery by centrifugal force.
Compression by hydraulic rollers.
Drying:
Hot air injection via a ventilated ring.
Classification:
Selection by high-efficiency separator.
Fine powder → Bag filter.
Coarse particles → Recycling.
Control:
Automatic regulation of key parameters.
This complete solution enables optimal recovery of industrial by-products while ensuring productivity and environmental friendliness.
