CM Hammer Crusher
Capacity: 10-100 t/h
Discharge Fineness: 0-8 mm
Liming Heavy Industry's CM hammer crusher is a high-performance primary crushing equipment, specially designed for medium-hard materials such as construction aggregates, ores, and industrial waste. With its robust structure and high-strength alloy hammers, it offers a high reduction ratio, increased output, and simplified maintenance, making it ideal for the construction, mining, and metallurgical industries.
Mineral Processing:
🏗 Construction Aggregates: Limestone, sandstone, pebbles, demolition waste.
⚙ Industrial Materials: Coal shale, clay, gypsum, feldspar.
🔥 Metallurgical Residues: Slag, steel slag, furnace ash.
🧪 Others: Chemicals, salt minerals, etc.

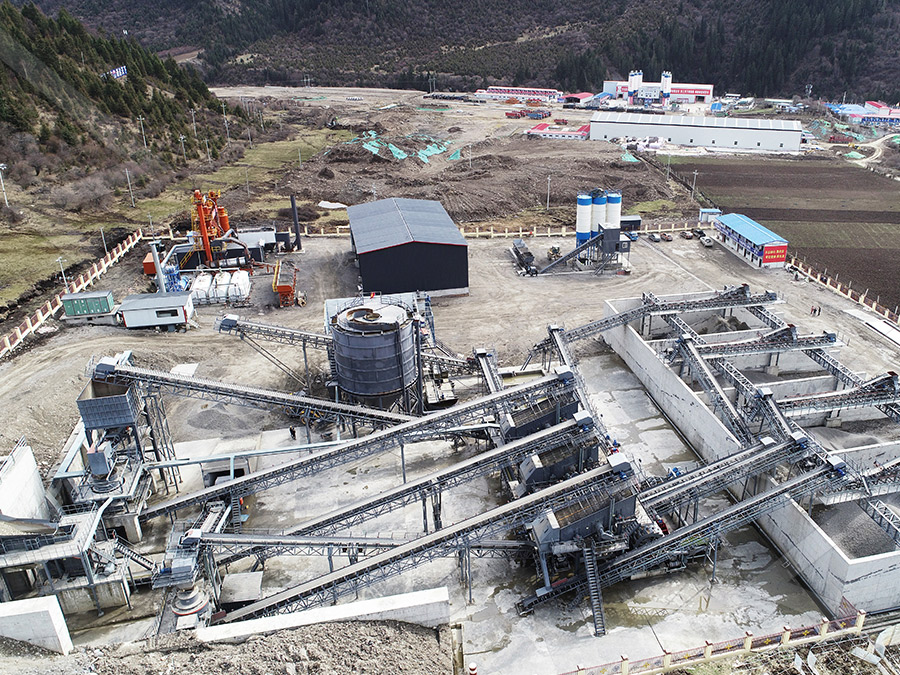

Production Line
Get a free consultation
Application
🏭 Cement plants: Pre-crushing of raw materials.
⛏ Mining: Primary crushing in quarries.
♻ Recycling: Recovery of rubble and construction waste.
⚗ Chemical industry: Coarse grinding of basic products.
🏗 Metallurgy: Pre-treatment of slag.
Product Features
1. High-performance design
Heavy-duty chrome alloy hammers: 3x wear resistance.
Large-diameter rotor: +25% crushing efficiency.
Adjustable output size (3-8 mm) via interchangeable screen.
2. Reliability and durability
Welded, anti-vibration frame for optimal stability.
Centralized bearing lubrication (grease or oil).
Hydraulic opening for quick maintenance.
3. Energy savings
-15 to 20% energy consumption vs. conventional crushers.
Standardized wear parts, replacement in 30 minutes.
Flexible installation (lightweight foundations required).
4. Safety and Ecology
Closed enclosure: Dust emissions <10 mg/m³.
Damping system: Noise level ≤75 dB.
Automatic overload protection.
Working Principle
Feeding: Materials are introduced into the crushing chamber.
Primary Impact: High-speed rotating hammers (1,000-1,500 rpm) break up the blocks.
Secondary Crushing: Particles are projected against impact plates for further crushing.
Screening: Fine particles pass through sizing screens, while coarse particles undergo a further cycle.
Discharge: Compliant aggregates are discharged by conveyor.
Key Benefit: Closed-circuit crushing, ideal for continuous production with consistent particle sizes.
