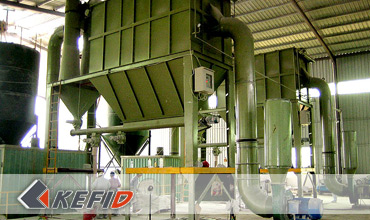

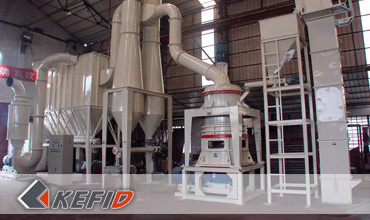

Micro Powder Mill

HGM series micro powder mill is processing equipment for fine powder and super fine powder. The micro powder mill's mainly used to grind non-flammable, non-explosive non-mental materials with medium and low hardness, temperature below 6%, and mohs hardness below 9 degrees.

Gallery Word PDF Bookmark Get Price

Kefid Gallery
Kefid Video
Mobile Crushing Plant
Crawler Mobile Crusher
Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Cone Crusher
Mobile VSI Crusher
Stationary Crushing Plant
Jaw Crusher
Impact Crusher
Cone Crusher
VSI Crusher
Aggregate Production Line
Stone Crushing Plant
Sand Making Plant
Grinding Mill
Vertical Mill
MTW Series Trapezoid Mill
European Hammer Mill
Micro Powder Mill
Trapezium Mill
High Pressure Mill
Raymond Mill
Ball Mill
Screening & Washing
Vibrating Screen
Screw Sand Washing Machine
Wheel Sand Washing Machine
Feeding & Conveying
Vibrating feeder
Belt Conveyor

Contact Us (Shanghai)

Contact Us (Zhengzhou)

Please contact us online or send email to sales@kefidinc.com, if you want to find the nearest Micro Powder Mill working site in your country.

Features of Micro Powder Mill

1. Low cost. With same fineness and motor power, it invest less comparing with airflow mill, stirring mill, ball mill, which is of low cost, short recovery period and twice more production capacity.

2. High powder outlet ratio. With same product fineness and energy consumption, the capacity is 45% higher than that of airflow mill and stirring mill.

3. Less loss of wearable parts, long service life. All wearable parts are of high-quality abrasion resistant materials both at home and abroad, the service life of which is longer than ordinary mill, generally more than one year.

4. High security and reliability, running safely and stably in the grinding cavity. Comparing with ordinary mill, the super fine mill has advantages of no rolling draft, no bolts. Thus, there is no problem of weariness of drafts and other seal parts, which can avoid bolts loosing and machine damage.

5. High fineness of final product. Final fineness can reach d97≤5μm.

6. Environmental conservation. High efficient pulse dust removing device is adopted, which can guarantee little dust pollution of the whole equipment. Silencer room is allocated, which will reduce dust pollution and noise, meeting the national environment protection standard, and protecting the surrounding environment.

Get Free support and more discount!

Technical Data of Micro Powder Mill

Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Model HGM80 HGM100
Roller number 21 27
Diameter (mm) Φ800 Φ1000
Ring number 3 3
Main unit speed(mm) 180-235 150-200
Max. feeding size(mm) <10 <10
Final size (mesh) 300-3000 300-3000
Capacity (kg/h) 500-3500 900-6500
Overall dimension (m) 12.4×3.5×5.8 14.5×5.0×8.6

Note: Any change of Micro Powder Mill technical data shall not be advised additionally.
