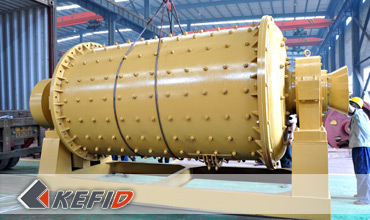

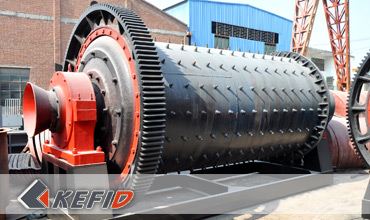

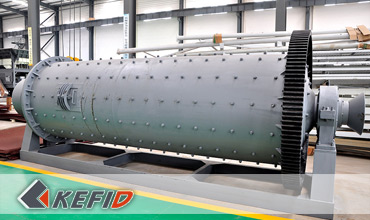

Ball Mill

Ball mill is suited for milling various kinds of minerals and other materials. It is divided into two kinds of types, dry grinding and wet grinding. Ball mill is the key device for the materials to be grinded after being crushed. Ball mill is widely used in the mineral separation, construction materials, and chemical industry, and so on.

Gallery Word PDF Bookmark Get Price

Kefid Gallery
Kefid Video
Mobile Crushing Plant
Crawler Mobile Crusher
Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Cone Crusher
Mobile VSI Crusher
Stationary Crushing Plant
Jaw Crusher
Impact Crusher
Cone Crusher
VSI Crusher
Aggregate Production Line
Stone Crushing Plant
Sand Making Plant
Grinding Mill
Vertical Mill
MTW Series Trapezoid Mill
European Hammer Mill
Micro Powder Mill
Trapezium Mill
High Pressure Mill
Raymond Mill
Ball Mill
Screening & Washing
Vibrating Screen
Screw Sand Washing Machine
Wheel Sand Washing Machine
Feeding & Conveying
Vibrating feeder
Belt Conveyor

Contact Us (Shanghai)

Contact Us (Zhengzhou)

Please contact us online or send email to sales@kefidinc.com, if you want to find the nearest Ball Mill working site in your country.

Application of Ball Mill

Ball mill is widely used for cement, silicate products, new building material, fireproof material, chemical fertilizer, ferrous and non-ferrous metal mineral dressing and glass-ceramic areas. Totally, it is used for dry or wet milling for various materials.

The machine consist of feeding part, discharging part, rotary division, transmission division(speed reducer, small transmission gear, electric motor, drive-by-wire)and other main parts. The quill shaft adopts cast steel and replaceable lining. Slewing gear adopts casting hobbling processing. There inlay wearing-resistant lining board in the barrel, which has favorable abrasive resistance. Ball mill operates smoothly and reliable.

Get Free support and more discount!

Technical Data of Ball Mill

Model Speed of
bucket (r/min)
Weight of ball (t) Size of feed
opening (mm)
size of outputting
feed (mm)
Production (t/h) Power (kW) Weight (t)
Ф900×1800 38 1.5 ≤20 0.075-0.89 0.65-2 18.5 3.6
Ф900×3000 38 2.7 ≤20 0.075-0.89 1.1-3.5 22 4.6
Ф1200×2400 32 3.8 ≤25 0.075-0.6 1.5-4.8 45 12.5
Ф1200×3000 32 5 ≤25 0.075-0.4 1.6-5 45 12.8
Ф1200×4500 32 7 ≤25 0.075-0.4 1.6-5.8 55 13.8
Ф1500×3000 27 8 ≤25 0.075-0.4 2-5 90 17
Ф1500×4500 27 14 ≤25 0.075-0.4 3-6 110 21
Ф1500×5700 27 15 ≤25 0.075-0.4 3.5-6 132 24.7
Ф1830×3000 24 11 ≤25 0.075-0.4 4-10 180 28
Ф1830×6400 24 23 ≤25 0.075-0.4 6.5-15 210 34
Ф1830×7000 24 25 ≤25 0.075-0.4 7.5-17 245 36
Ф2200×5500 21 30 ≤25 0.075-0.4 10-22 370 48.5
Ф2200×6500 21 30 ≤25 0.075-0.4 14-26 280 52.8
Ф2200×7500 21 33 ≤25 0.075-0.4 16-29 380 56
Φ2200×9500 21 38 ≤25 0.074-0.4 18-35 475 62

Note: Any change of Ball Mill technical data shall not be advised additionally.
