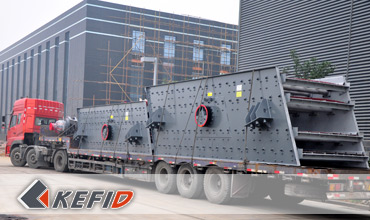

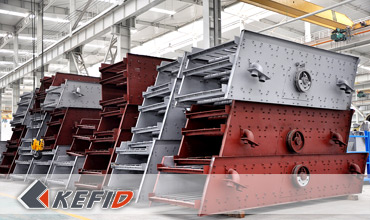

The circular vibrating screen is a new vibrating screen vibrating in a circle, with multiple layers and high efficiency. This screen adopts barrel type eccentric vibration generator, and eccentric block for swing adjustment. Vibrating Screen has a long vibrating line, various screen specifications, reliable structure, and vibrating power and specially designed for quarries stone screening.

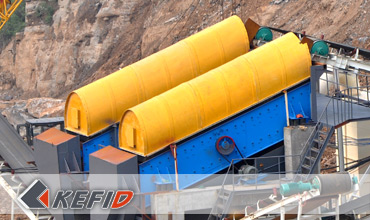

Please contact us online or send email to sales@kefidinc.com, if you want to find the nearest Vibrating Screen working site in your country.
1. Structure of the circular vibrating screen is new, advanced in technical parameters, high in capacity and screen ratio.
2. This screen adopts eccentric draft and block to adjust swing, operation and maintenance is quite convenient.
3. This screen adopts spring steel knitted screen nest or perforated screen plate, which has long life span and its screen holds are not easy to be stopped.
4. This screen adopts the rubber vibration isolation spring, which has longer life span, low noise and stable resonance region.
Vibrating Screen is widely used for products grading for ore, construction materials, traffic, energy, chemistry and other industries, which is ideal equipment for crushing and screening assembly. While small meshed screen is installed, wet and sticky materials can be screened only by adding water to spray.
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
Note: Any change of Vibrating Screen technical data shall not be advised additionally.
