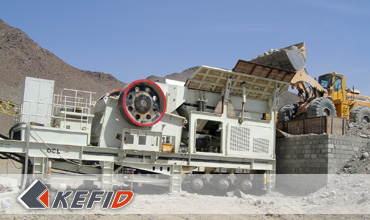

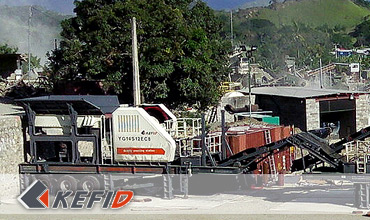

Mobile jaw crusher is the newest rock crushing equipment, mainly used in metallurgy, chemical industry ,building materials, hydroelectric power and material processing that often requires removal working, especially for highways, railways, hydroelectric subjects. The users can adopt a variety of configurations according to different type of raw materials, different requirements for scale and final product materials. Jaw crusher station has greatly expanded the concept of coarse crushing areas.

Gallery Word PDF Bookmark Get Price

Kefid Gallery
Kefid Video
Mobile Crushing Plant
Crawler Mobile Crusher
Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Cone Crusher
Mobile VSI Crusher
Stationary Crushing Plant
Jaw Crusher
Impact Crusher
Cone Crusher
VSI Crusher
Aggregate Production Line
Stone Crushing Plant
Sand Making Plant
Grinding Mill
Vertical Mill
MTW Series Trapezoid Mill
European Hammer Mill
Micro Powder Mill
Trapezium Mill
High Pressure Mill
Raymond Mill
Ball Mill
Screening & Washing
Vibrating Screen
Screw Sand Washing Machine
Wheel Sand Washing Machine
Feeding & Conveying
Vibrating feeder
Belt Conveyor

Contact Us (Shanghai)

Contact Us (Zhengzhou)

Please contact us online or send email to, if you want to find the nearest Mobile Jaw Crusher working site in your country.

Features of Mobile Jaw Crusher

1. High-performance crusher, great crushing ratio, and powerful crushing pioneer.

2. Truck-mounted motor and integrated control box.

3. Work with the integrated machines of jaw crusher, cone crusher, vertical impact crusher, feeders and vibrating screens.

4. With vehicle installation of sieve under the belt, vibrating screener and crusher.

5. Support of vehicle installation and settlement of equipments are prompt and convenient.

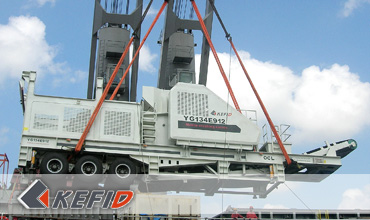

6. Steering traction axis will be helpful for high way transportation and getting close to the working site.

Get Free support and more discount!

Technical Data of Mobile Jaw Crusher

Model Technical data YG830E46 YG938E57 YG938E69 YG1142E710 YG134E912 YG134J811
Transportation Length (mm)
(If there is an diesel generator)
8600 9800 11900 13100 14000 14600
Transportation Width (mm) 2450 2450 2550 2550 2950 2550
Transporation Height (mm) 3800 3500 3650 4450 4500 4500
Maximum Length (mm) 12000 13300 12100 13300 14600 14600
Maximum Width (mm) 2800 2900 2900 2950 3300 3300
Maximum Height (mm) 3800 4100 4060 4810 5300 5300
Weight (T) 26 32 41 55 81 65
Tire Configuration Dualaxial Dualaxial Dualaxial Triaxial Triaxial Triaxial
Jaw crusher


The maximum Feeding size (mm) 350 425 480 630 750 720
Discharge opening size(mm) 40-100 50-100 65-160 80-140 95-165 100-225
Capacity (T/h) 15-60 50-100 90-180 110-320 220-450 200-500
Vibrating Feeder ZSW850
Belt conveyor B650×7M B650×7.5M B800×8.5M B1000×9M B1200×9.5M B1200×9.5M

Note: Any change of Mobile Jaw Crusher technical data shall not be advised additionally.
